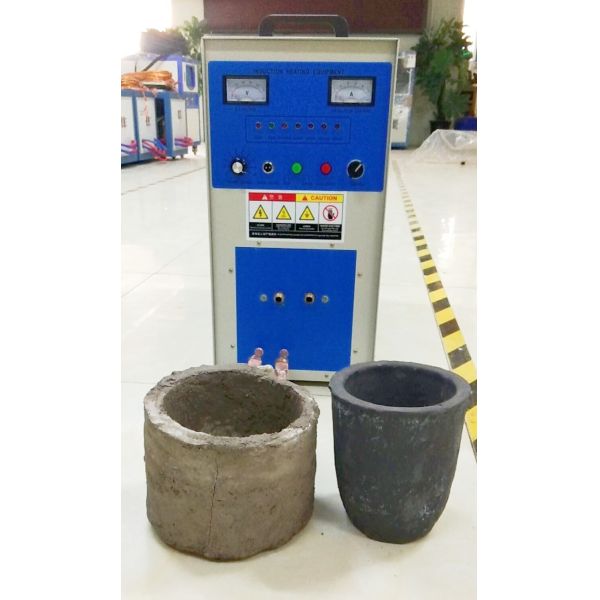

1kg 3kg 5kg Copper Scraps Melting Furnace

Name: 1kg 3kg 5kg Copper Scraps Melting Furnace
Brand: Lanshuo
Price: 1200 USD

Quality 1kg 3kg 5kg Copper Scraps Melting Furnace for sale

Brand Name : Lanshuo

Model Number : LSW-30

Certification : CE ISO EAC

Place of Origin : China

MOQ : 1 set

Price : USD 1200-2000 / set

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 3000 Set/Sets per Year

Delivery Time : 1-3 working days

Packaging Details : plywood case, 1250*350*680mm

Type : Induction Melting Oven

Power source : Electricity

Rated Power : 30kw

Usage : Metal Smelting

Application : Iron Steel Copper Gold Silver Aluminum Smelting

Melting Capacity : 1-5kg

Input Voltage : 3-phase 380v 50/60 Hz

Oscillation Frequency : 25-40Khz

Contact Now

30kw Portable Electric Furnace Induction Melting Furnace

1. Brief Introduction of Induction Melting Furnace:

LSW series induction melting furnace adopts IGBT series and parallel induction heating technology as the core. Alternating current in the coils melts the metals in the crucible and then heats the hot metal to the temperature needed. It is the heat treatment prior to forging, sintering and hot rolling in casting and melting industries.

2. Technical Parameters of LSW-30 Induction Melting Furnace:

Modle	LSW-30
Melting capacity	1-5kg copper gold silver iron steel zinc etc.
Rated Power	30KW
Input voltage	3-phase 380v, 50/60hz
Oscillation frequency	25-40Khz
Current(max)	50A
continuous load rate	100%
Cooling water flow(controller)	25L/Min 0.1mpa
Gross weight	60kg
Gross dimension	1250350680mm

3. Main Features of induction heating Melting machine:

(1) High efficiency: Induction power, heat transfers to the crucible in a short time.

(2) Energy saving: Compared with traditional melting ways (gas & oil), saving 20%~30% power.

(3) Easy and safe to use: All-round indicator lights controller, much safer and easier for workers to operate.

(4) Stable in use: Our products have been tested at every level, reducing the rate of failure to a great extent.

(5) Environmentally friendly: Electricity-powered, no air pollution, no dust and little noise.

(6) Easy to carry and install: Portable, saving much more room.

1kg 3kg 5kg Copper Scraps Melting Furnace

1kg 3kg 5kg Copper Scraps Melting Furnace

4. Certificates
